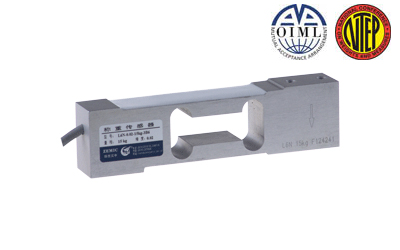

| Nombre del producto: L6N(Zemic) |
Instroduction producto:
◆L6N load cells are available in the capacities 3kg to 100kg.
◆Alumium construction with parallel beam.
◆Silicon adhesive sealed, surface anodized and anti-corrosion.
◆Intergral structure and easy installation.
◆Suitable for electronic balance and other electronic
weighing devices. |
Features
◆Capacity:3kg to 100kg .
◆High accuracy.
◆Max. platform size:
400x400mm.
◆With OIML approval. |
Specifications
|
Capacity |
(kg) |
3/5/8/10/15/20/30/40/50/75/100 |
|
Accuracy |
|
C3 |
| Approvals |
|
OIML R60 C3 |
|
Maximum number of verification intervals |
n max |
3000 |
|
Minimum load cell verification interval |
v min |
Emax/7000 |
|
Combined error |
(%FS) |
≤±0.020 |
|
Creep |
(%FS/30min) |
≤±0.0167 |
|
Temperature effect on sensitivity |
(%FS/10℃) |
≤±0.0175 |
|
Temperature effect on zero |
(%FS/10℃) |
≤±0.020 |
|
Output sensitivity |
(mv/v) |
2.0±0.2 |
|
Input resistance |
(Ω) |
406±6 |
|
Output resistance |
(Ω) |
350±3 |
|
Insulation resistance |
(MΩ) |
≥5000(50VDC) |
|
Zero balance |
(%FS) |
2 |
|
Temperature,compensated |
(℃) |
-10～+40 |
|
Temperature,operating |
(℃) |
-35～+65 |
|
Excitation, Recommended |
(V) |
5～12(DC) |
| Excitation,Max |
(V) |
18(DC) |
|
Safe overload |
(%FS) |
150 |
|
Ultimate overload |
(%FS) |
300 |
| Corner correction |
|
0.02% load value/100mm |

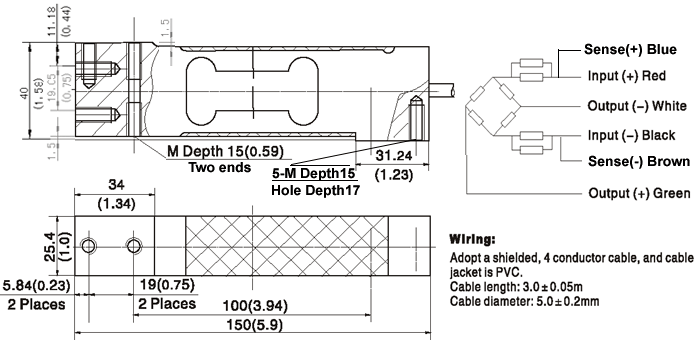

Outline Dimension mm(inch)
|
|
| |
|
|
| |
|
 |
|
